Model3 – Foton G7
Monitoring Ambulance

Advanced
Emergency Care on Wheels

France AJ Group presents the Model 3 – Foton G7 Monitoring Ambulance, a state-of-the-art mobile medical unit designed to meet the demands of emergency response and patient monitoring. Built on the reliable and spacious Foton G7 chassis, this ambulance is tailored for efficient intervention, safe patient transport, and real-time monitoring during critical situations. With its high-roof body, robust diesel engine, and fully customized interior layout, the Model 3 Monitoring Ambulance is engineered for hospitals, emergency services, disaster response, and healthcare institutions seeking a dependable, high-performance solution.

Key Features

1

Real-Time Monitoring Equipment

Equipped with multiparameter patient monitor, defibrillator, oxygen system, and emergency medical kit.

2

Spacious High-Roof Cabin

Allows medical staff to work comfortably in a standing position.

3

Customizable Interior Layout

Includes stretcher platform, medical storage, and technician seat with full safety harness.

4

Reinforced Safety Design

Built with high-strength steel and anti-collision beams for enhanced protection.

5

Built to International Ambulance Standards

Complies with ISO, CE, and local health ministry regulations.

6

Multiple Conversion Options Available

Tailored configurations based on client country regulations and usage.

Galleries

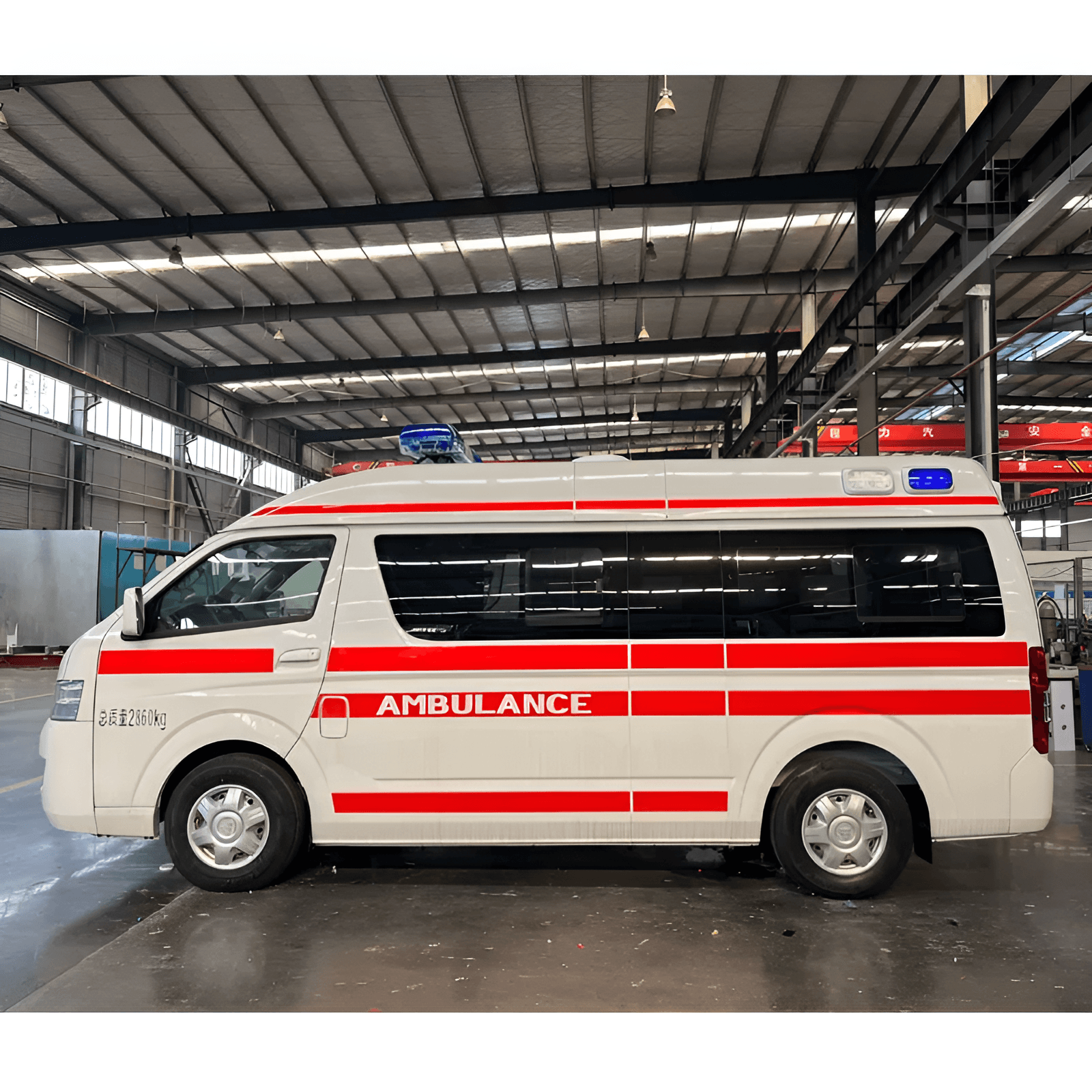

Foton G7 ambulance 1

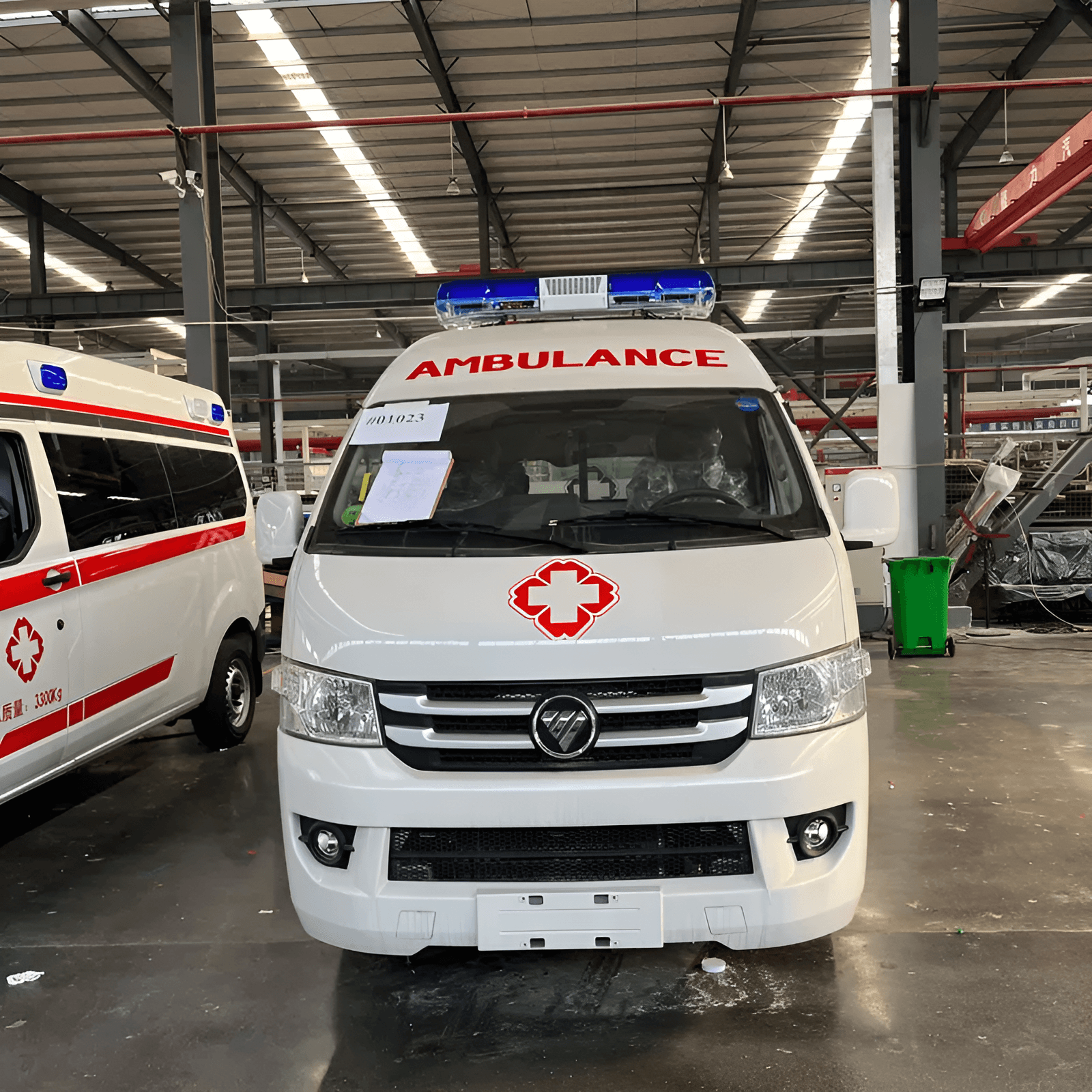

Foton G7 ambulance 2

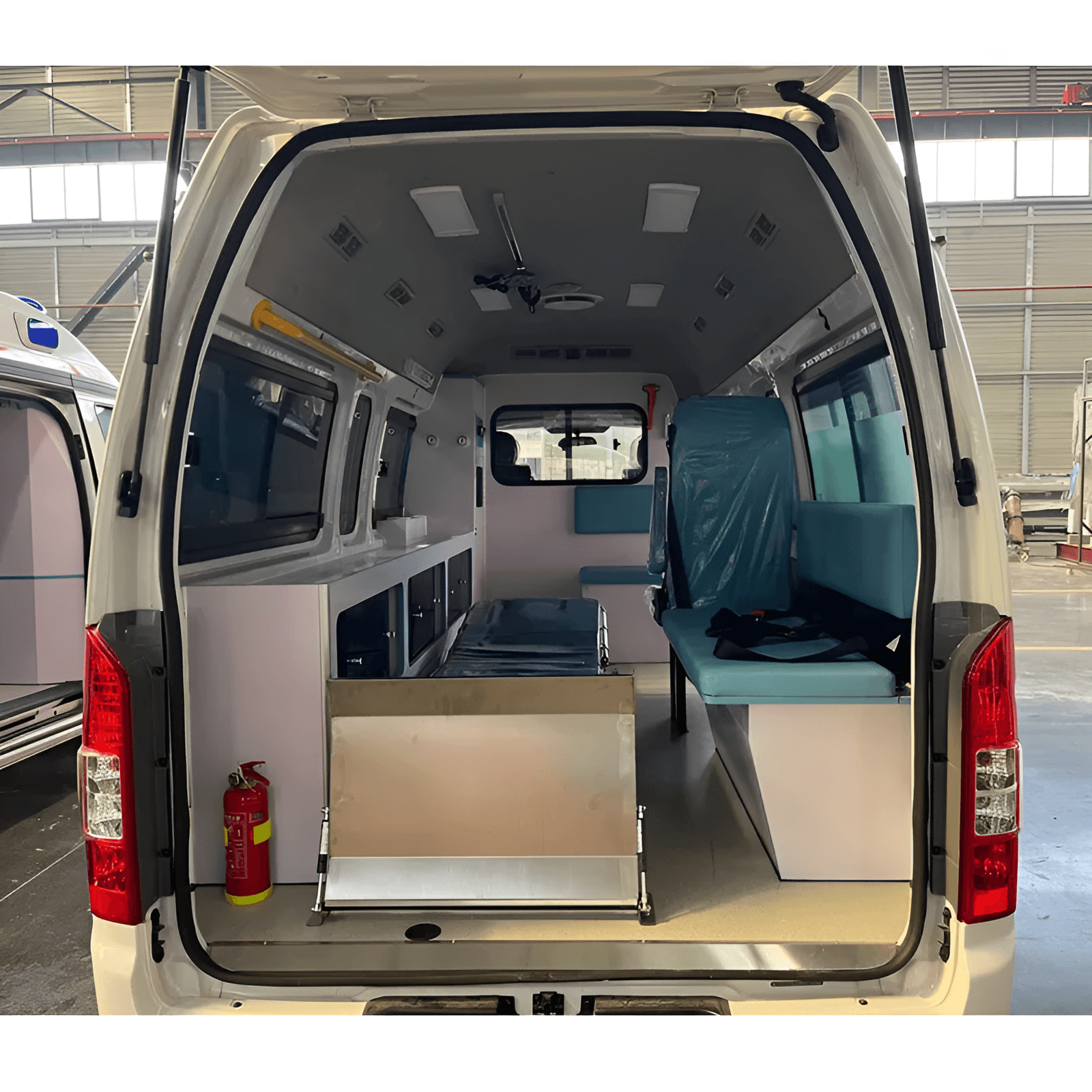

Foton G7 ambulance 3

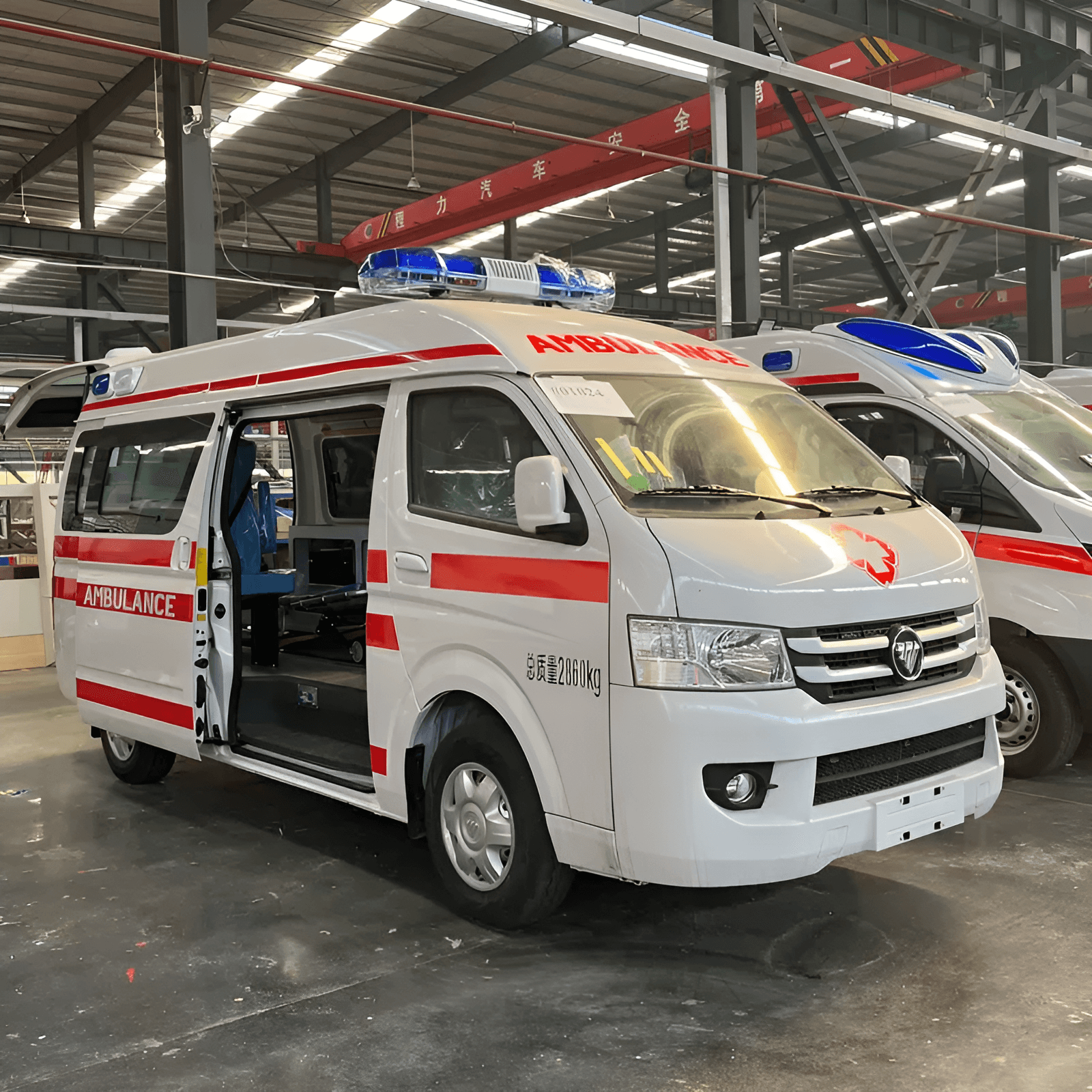

Foton G7 ambulance 4

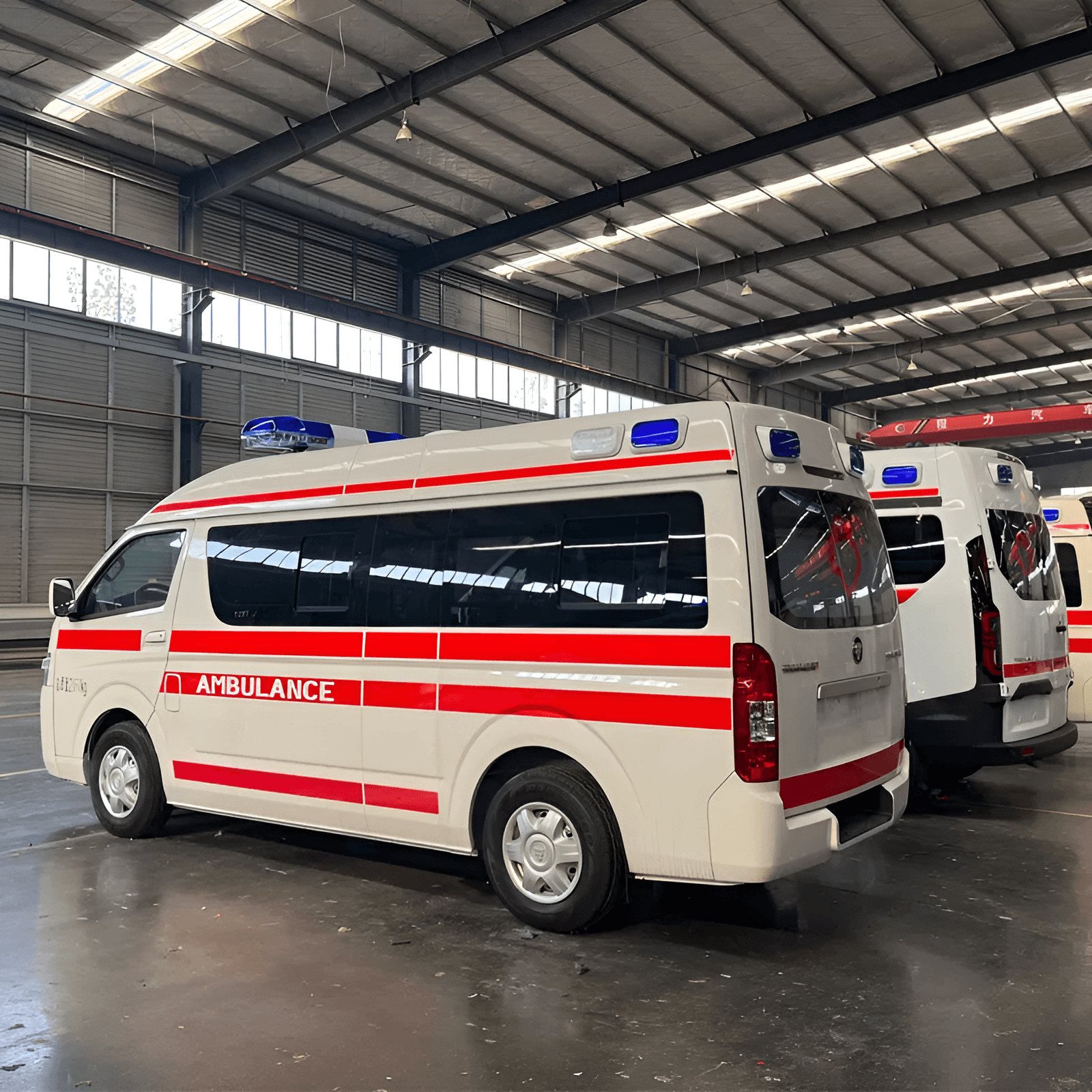

Foton G7 ambulance 5

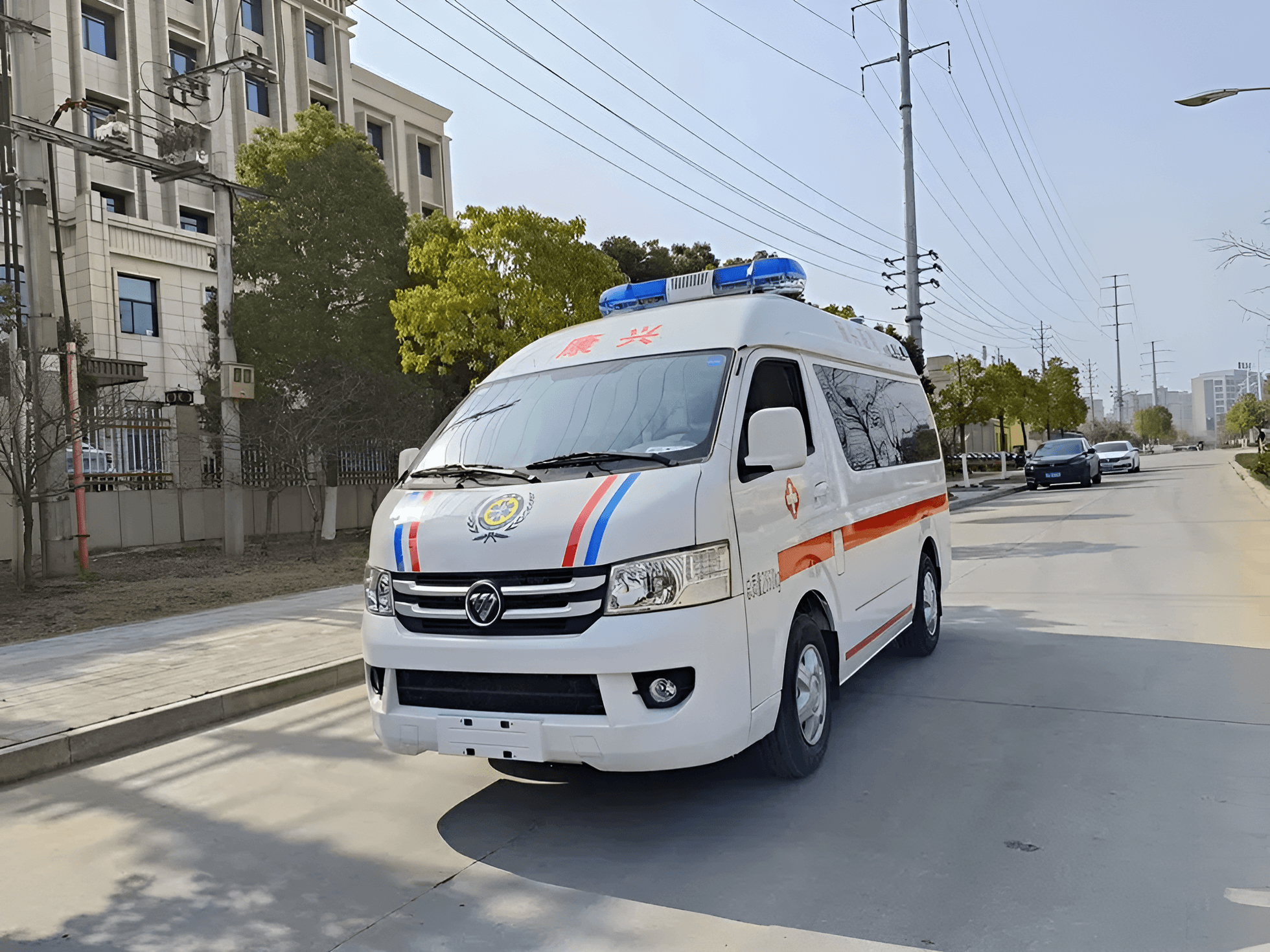

Foton G7 ambulance 6

Medical Equipment – Standard Configuration

The Model 3 – Foton G7 Monitoring Ambulance is fully equipped to handle critical medical emergencies with efficiency and reliability. Every element is carefully designed to support patient care and medical staff performance in mobile environments.

Body structure

  • It adopts steel reinforced frame structure design, safe and reliable.
  • The right side of the car body is equipped with a sliding door, and the rear end adopts a double-open tailgate structure, with a large opening width, which is convenient for doctors and patients and stretchers
  • Up and down.

Vehicle appearance

  • The whole body is white, the red cross logo is pasted on the front, both sides of the body and the tailgate, and the body color bar is pasted around, which is bright, eye-catching and effective warning.
  • Medical cabin glass is pasted with 2/3 frosted cellophane to effectively protect patients' privacy

Warning lamps

  • The front top is equipped with I-shaped warning light, which is integrated and beautiful.
  • The horn power is 100W.
  • Blue and white flashing lights are installed on both sides and at the rear for effective warning.

Ambulance system

  • Automatic loading stretcher: the stretcher is made of high-strength aluminum alloy, PVC waterproof sponge mattress, and the backrest is adjustable; The thickened oval leg tube, the evenly distributed auxiliary loading wheel and aluminum block greatly increase the bearing capacity of the derrick, and the loading process can be easily completed by only one person.
  • Stretcher platform: It is made of high-quality aluminum alloy materials to assist the stretcher to get on and off.
  • Infusion frame: 1 set of aluminum alloy guide rail type infusion frame is installed on the top of the medical cabin, including 2 folding hooks.

Medical oxygen control system

  • Two 10L steel oxygen cylinders with a nominal pressure of 15MPA (light weight, easy to load and replace) are equipped with two single-gauge pressure reducing valves, two German oxygen terminals, a respirator interface and a wall-type oxygen inhaler. When patients inhale oxygen, they can control the oxygen output, and are equipped with humidifying bottles to provide patients with moist oxygen, which is more conducive to oxygen inhalation.

floodlight

  • Four 12V cabin lighting lamps with stable light source and large illumination area, and two infusion spotlights.

Inverter

  • Vehicle-mounted sine wave 1000W, stable frequency, stable voltage and stable output power, providing power for on-board equipment; Two sets of 220V/12V multi-function sockets (can be connected to two/three holes, AC/DC dual purpose).

Disinfection lamp

  • 1 intelligent and regular ultraviolet disinfection to ensure the health and safety in the cabin.

Air conditioning

  • 1 set of rear air conditioner and rear heating device, with independent control of cooling and heating, and reasonable control of cabin temperature as required.

ventilator

  • A set of DC12V multi-function ventilator with suction and exhaust is installed on the roof, which can effectively ensure the efficient circulation of air in the medical cabin.

Disinfection lamp

  • 1 intelligent and regular ultraviolet disinfection to ensure the health and safety in the cabin.

Middle partition assembly

  • The middle partition assembly is installed with a set of middle partition made of new environment-friendly materials between the cab and the medical cabin, and a glass observation window is set on the middle partition to facilitate observation and communication between the front and rear cabins.

ventilator

  • A set of DC12V multi-function ventilator with suction and exhaust is installed on the roof, which can effectively ensure the efficient circulation of air in the medical cabin.

Cabinet assembly

  • Install a set of long equipment cabinet made of new environmental protection materials. The cabinet body is equipped with drawers, space cabinets and other storage spaces;
  • Install a set of oxygen cylinder cabinet made of new environment-friendly materials, which can accommodate 2 10L oxygen cylinders; Install a set of wall cabinets made of new environmental protection materials. The wall cabinet adopts sliding door structure, which is convenient to open the cabinet door;
  • Install a set of long seat cabinet, including cushion, backrest and two-point seat belt.

Medical cabin interior

  • Interior of medical cabin: made of new lightweight materials, waterproof, mildew-proof, antibacterial and easy to clean.
  • Medical cabin floor: made of medical floor leather material, which is anti-skid, waterproof, mildew-proof, antibacterial and easy to clean.

Side sliding door sliding window

  • Flat sliding glass window.

walkie-talkie

  • A hands-free microphone is installed in the cockpit and the medical cabin respectively to facilitate communication between the front and rear cabin personnel.

fire extinguisher

  • The medical cabin is equipped with a set of 1kg dry powder fire extinguisher.

Dirt bucket

  • The medical cabin is equipped with a foot-operated dirt bucket with a cover.

Safety handrail

  • Install a long strip handrail on the top of the medical cabin.

Emergency hammer

  • Install an emergency hammer in the medical cabin.
